Acuity Brands TFX3 LED 40K MVOLT IS DD

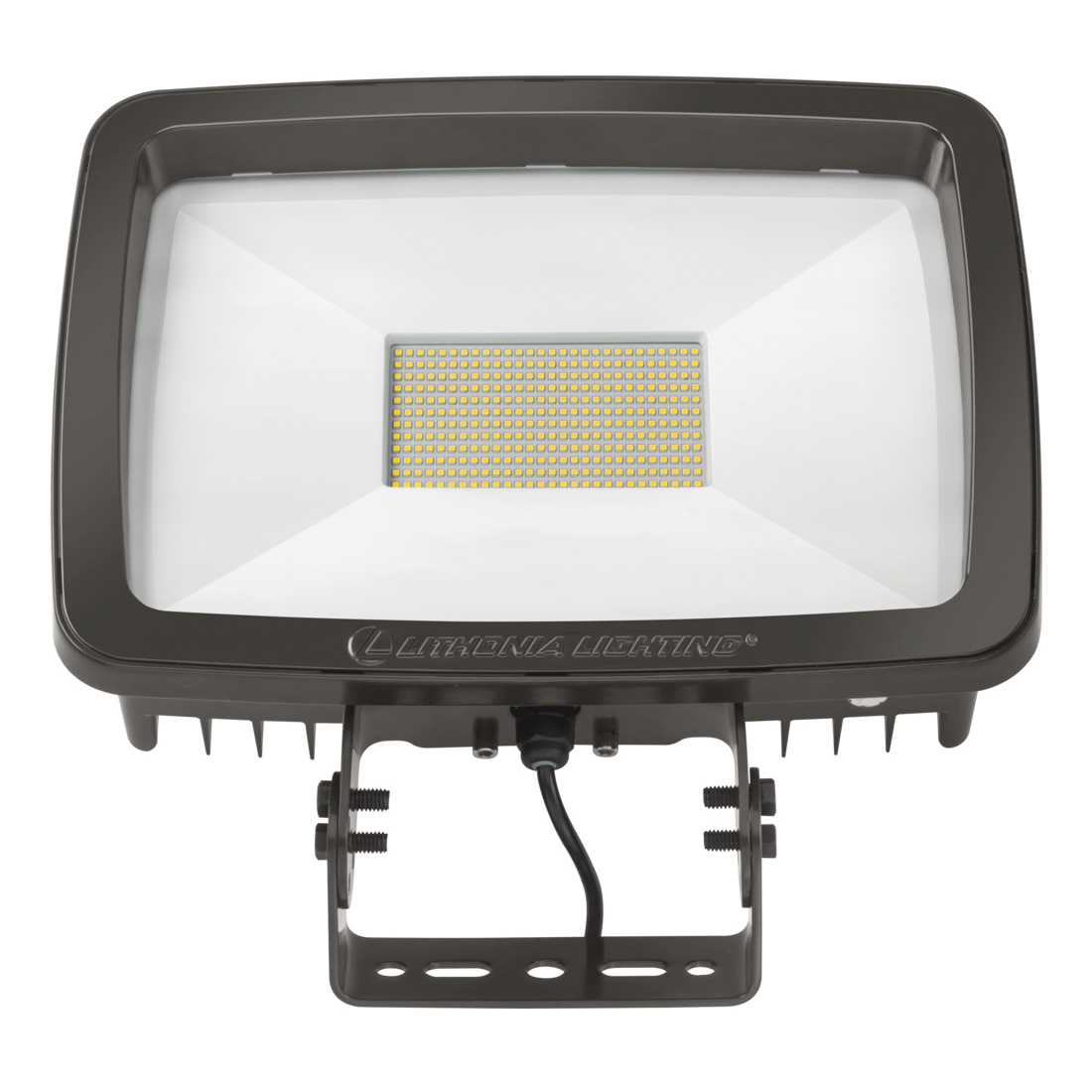

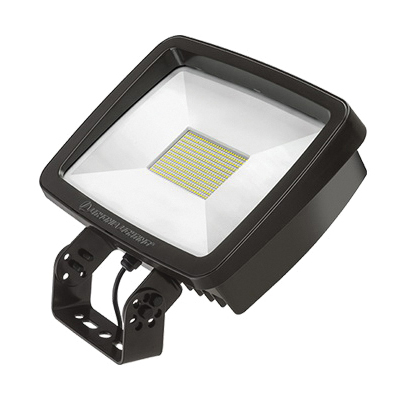

Lithonia Lighting® TFX3 LED 40K MVOLT IS DD Floodlight, LED Lamp, 188 W Fixture, 120/208/240/277 VAC, Gloss Housing
- Brand: Lithonia Lighting®
- MPN: TFX3 LED 40K MVOLT IS DD
- UPC: 785991119398
- UNSPSC: 39111611
- ASPN: LITHTFX3LED40KMVOLTISDDB
- Min. Order Qty: 1
- Qty. Interval: 1
Lithonia Lighting® Floodlight, Series: TFX3, 120/208/240/277 VAC, 188 W Fixture, 0.68/0.78/0.90/1.57 A, LED Lamp, 141 Lumens/W, 4000 K Color, 70 CRI, 25600 Lumens, Type SO Cord, IP66, Slipfitter Mount, Die Cast Aluminum Housing, Gloss Housing, 20-3/4 in H x 18 in W x 5 in D
| Series | : | TFX3 |
| Voltage Rating | : | 120/208/240/277 VAC |
| Fixture Wattage | : | 188 W |
| Amperage Rating | : | 0.68/0.78/0.90/1.57 A |
| Lamp Type | : | LED |
| Light Output | : | 141 Lumens/W |
| Color Temperature | : | 4000 K |
| Color Rendering Index (CRI) | : | 70 |
| Lumens | : | 25600 Lumens |
| Cord Type | : | Type SO |
| Enclosure Type | : | IP66 |
| Mounting Type | : | Slipfitter |
| Housing Material | : | Die Cast Aluminum |
| Housing Finish | : | Gloss |
| Dimensions | : | 20-3/4 in H x 18 in W x 5 in D |
-
Catalog
https://www.frenchgerleman.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/69/ITEM/DOC/Lithonia_Lighting_TFX1_LED_40K_MVOLT_YK_DD_Catalog.pdf
-
Specification Sheet
https://www.frenchgerleman.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/69/ITEM/DOC/Lithonia_Lighting_TFX3_LED_40K_MVOLT_IS_DD_Specification_Sheet.pdf
