MTE Corporation RLW-010403

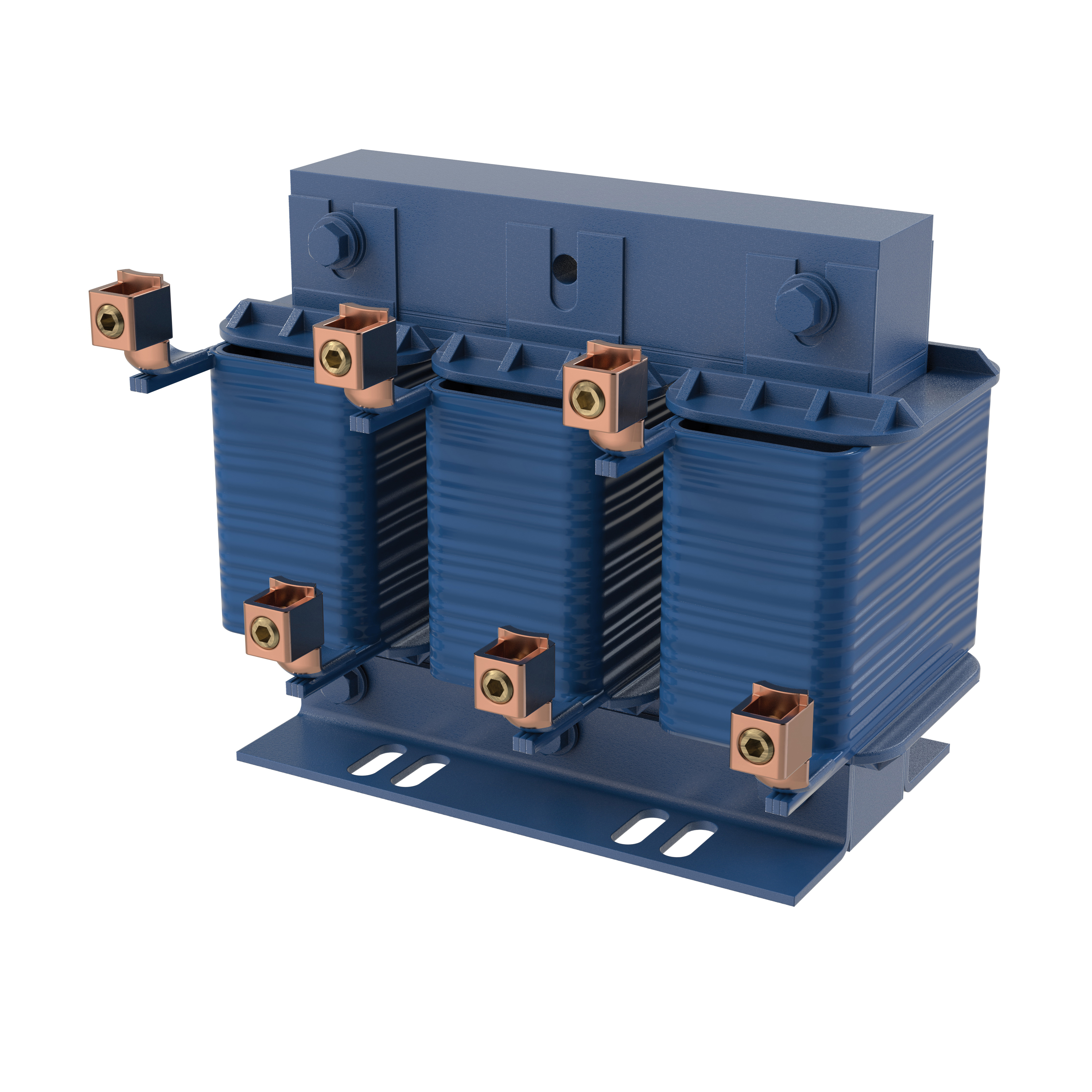

MTE RLW-010403 Line Reactor, 208 to 690 VAC, 104 A, 25 to 100 hp, 0.23 mH, 3 and 5 % Impedance, 7.1 in H x 8.9 in W
- Brand: MTE
- MPN: RLW-010403
- UNSPSC: 39121015
- ASPN: MTERLW010403
- Min. Order Qty: 1
- Qty. Interval: 1
MTE Line Reactor, Series: RLW, 208 to 690 VAC, 104 A, 25 to 100 hp, 3 ph, 0.23 mH Inductance, 3 and 5 % Impedance, 7.1 in Height, 8.9 in Width, 6.2 in Depth, Open Enclosure, Surface Mounting, Silicon Steel, Vacuum Dipped/Baked Epoxy Resin
| Series | : | RLW |
| Voltage Rating | : | 208 to 690 VAC |
| Amperage Rating | : | 104 A |
| Horsepower | : | 25 to 100 hp |
| Phase | : | 3 |
| Inductance | : | 0.23 mH |
| Impedance | : | 3 and 5 % |
| Height | : | 7.1 in |
| Width | : | 8.9 in |
| Depth | : | 6.2 in |
| Enclosure Type | : | Open |
| Mounting Type | : | Surface |
| Material | : | Silicon Steel |
| Finish | : | Vacuum Dipped/Baked Epoxy Resin |
- Put an end to power spike issues and minimize downtime with our RLW line/load reactors from MTE
- Proven performance in the field
- Reliable and economical
- Compact and lightweight
- Ideal for OEMs, integrators and panel builders
- Reduces line side harmonic distortion to 30 to 35%
- Reduces load side dv/dt rate, motor peak terminal voltage, operating temperature and audible noise
- Improves waveform integrity for enhancement of motor performance and system efficiency
-
Catalog
https://www.frenchgerleman.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/MTE_RLW_001101_Catalog.pdf
-
Full Engineering Drawing
https://www.frenchgerleman.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/MTE_RLW_010403_Full_Engineering_Drawing.pdf
-
Instruction/Installation Manual
https://www.frenchgerleman.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/MTE_RLW_02P105_Manual.pdf
-
Specification Sheet
https://www.frenchgerleman.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/MTE_RLW_02P105_Specification_Sheet.pdf
- Video Link https://www.frenchgerleman.com/https://youtu.be/42QVneTT-Gg
