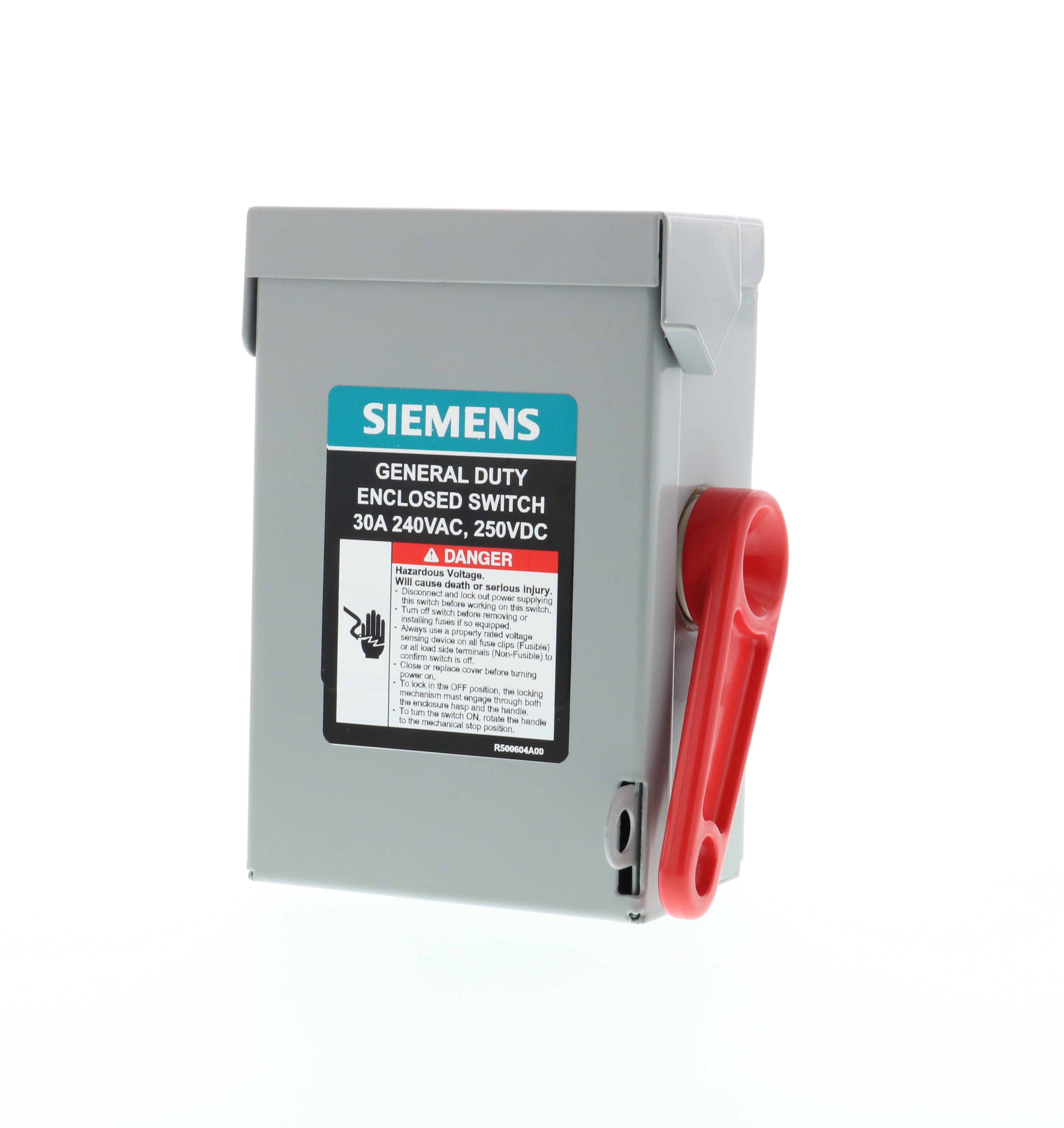

Siemens GNF321A
Siemens GNF321A A Series Type VBII Enclosed General Duty Low Voltage Non-Fusible Single Throw Safety Switch, 240 VAC, 30 A, 3 hp, 5 hp, 7-1/2 hp, 3 Poles
- Brand: Siemens
- MPN: GNF321A
- UPC: 804766753367
- UNSPSC: 39122205
- ASPN: SIEGNF321A
- Min. Order Qty: 1
- Qty. Interval: 1
Siemens Safety Switch, Type VBII Enclosed General Duty Low Voltage Non-Fusible Single Throw, Series: A Series, 240 VAC, 30 A, 3 hp, 5 hp, 7-1/2 hp, 1/3 ph, 60 Hz Frequency, 3 Pole, 3 Wires, 10/100 kA Short Circuit, NEMA 1 Enclosure, Surface Mounting, Lug Terminal, -29 to 85 deg C, 6.35 in H x 4.56 in W x 2.7 in D Dimensions, Steel
| Type | : | Type VBII Enclosed Low Voltage Non-Fused |
| Series | : | A Series |
| Voltage Rating | : | 240 VAC |
| Amperage Rating | : | 30 A |
| Horsepower | : | 3 hp, 7-1/2 hp, 5 hp |
| Phase | : | 1/3 |
| Frequency Rating | : | 60 Hz |
| Number of Poles | : | 3 |
| Number of Wires | : | 3 |
| Short Circuit Current Rating | : | 10/100 kA |
| Actuator Type | : | Single Throw |
| Enclosure Type | : | NEMA 1 |
| Terminal Type | : | Lug |
| Dimensions | : | 6.35 in H x 4.56 in W x 2.7 in D |
- Updated switch is an enhancement of legacy VBII design
- New compact sizes for improved space efficiency
- New oversized lugs for maximum wire range and easy termination
- Visible blade, double break switching action
- Padlocking provisions to lock cover closed or to lock switch in the OFF position
- Rated 10 kA with class H fuses or circuit breaker, 100 kA with class R fuses
- 3 hp at 240 vac 1-phase 2-wire, 7-1/2 hp at 240 vac 3-phases 3-wire, 5 hp at 250 VDC
-
Catalog
https://www.frenchgerleman.com//ASSETS/DOCUMENTS/ITEMS/EN/Siemens_GNF322RA_Catalog.pdf
-
Catalog
https://www.frenchgerleman.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/Siemens_GNF322RA_Catalog.pdf
-
Owners/User Manual
https://www.frenchgerleman.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_630c086eccb0a85373c4c1bfb470824047d1b1c14cf0b1383e42d78328b2927c.pdf
-
Owners/User Manual
https://www.frenchgerleman.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_630c086eccb0a85373c4c1bfb470824047d1b1c14cf0b1383e42d78328b2927c.pdf
-
Specification Sheet
https://www.frenchgerleman.com//ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_61eae96578424962b503363598238adb8db3909a2d67ea546706b095eec25446.pdf
-
Specification Sheet
https://www.frenchgerleman.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_61eae96578424962b503363598238adb8db3909a2d67ea546706b095eec25446.pdf
