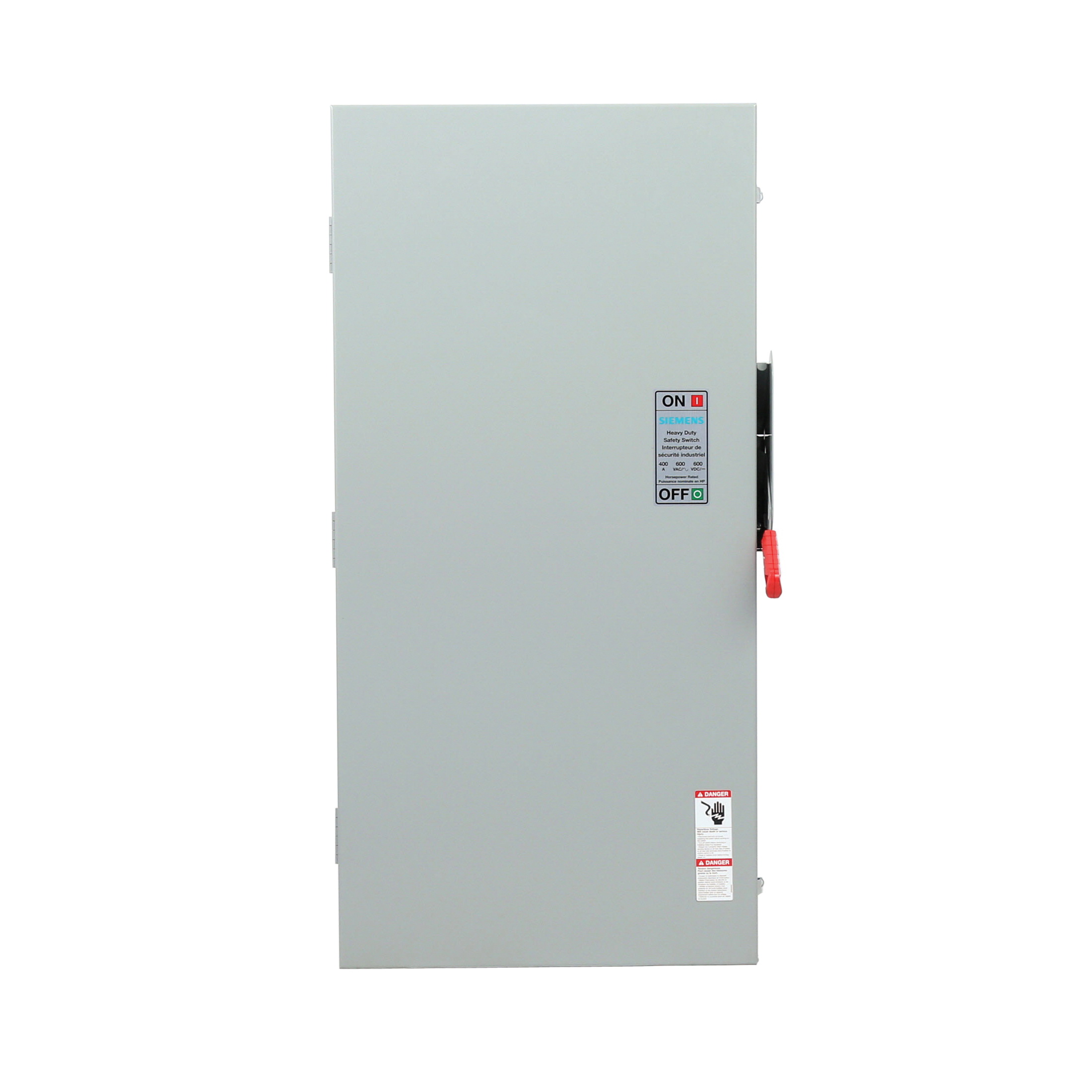

Siemens HF365NA
Siemens HF365NA Type VBII Fusible Heavy Duty Single Throw Safety Switch With Neutral, 600 VAC, 400 A, 125 hp, 350 hp, 3 Poles
- Brand: Siemens
- MPN: HF365NA
- UPC: 887621872526
- UNSPSC: 39122205
- ASPN: SIEHF365NA
- Min. Order Qty: 1
- Qty. Interval: 1
Siemens Safety Switch, Type VBII Fusible Heavy Duty Single Throw, 600 VAC, 400 A, 125 hp, 350 hp, 3 ph, 3 Pole, 4 Wires, NEMA 1 Enclosure, Surface Mounting, Lug Terminal, -29 to 85 deg C, Steel
| Type | : | Fusible Heavy Duty |
| Voltage Rating | : | 600 VAC |
| Amperage Rating | : | 400 A |
| Horsepower | : | 125/350 hp |
| Phase | : | 3 |
| Number of Poles | : | 3 |
| Number of Wires | : | 4 |
| Enclosure Type | : | NEMA 1 |
- Quick-make, quick break operating mechanism that ensures positive operation
- Visible blade, double break switching action
- Arc chutes dissipate heat and prolong switch life
- Highly visible red handle grip, designed for hook stick operation
- Defeatable dual cover interlock
- Center punch provided for field drilling to allow on padlocking
- Handle can be padlocked in the off position with up to (3) padlocks with 5/16 in hasps
- Generous top, bottom and side gutters that meet or exceed NEC wire bending space requirements
- Informative door labeling which includes replacement parts list
- Tangential knockouts through 600 A for easy conduit lineup
- Side hinged door that opens past 180 degs for easier wiring
- Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installer's hands
- Spring reinforced fuse clips that assure reliable contact for cool operation
- Door latch securely holds door closed and allows cover padlocking
- Front removable mechanical lugs that are suitable for copper/aluminum 60 or 75 deg C conductors
- Lugs are field convertible to copper body and to a wide variety of compression connectors
- Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals
- Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication
- Drawn cover for increased rigidity and resistance to abuse
- Top key hole and bottom mounting holes provide easy 2 or 3-point mounting
-
