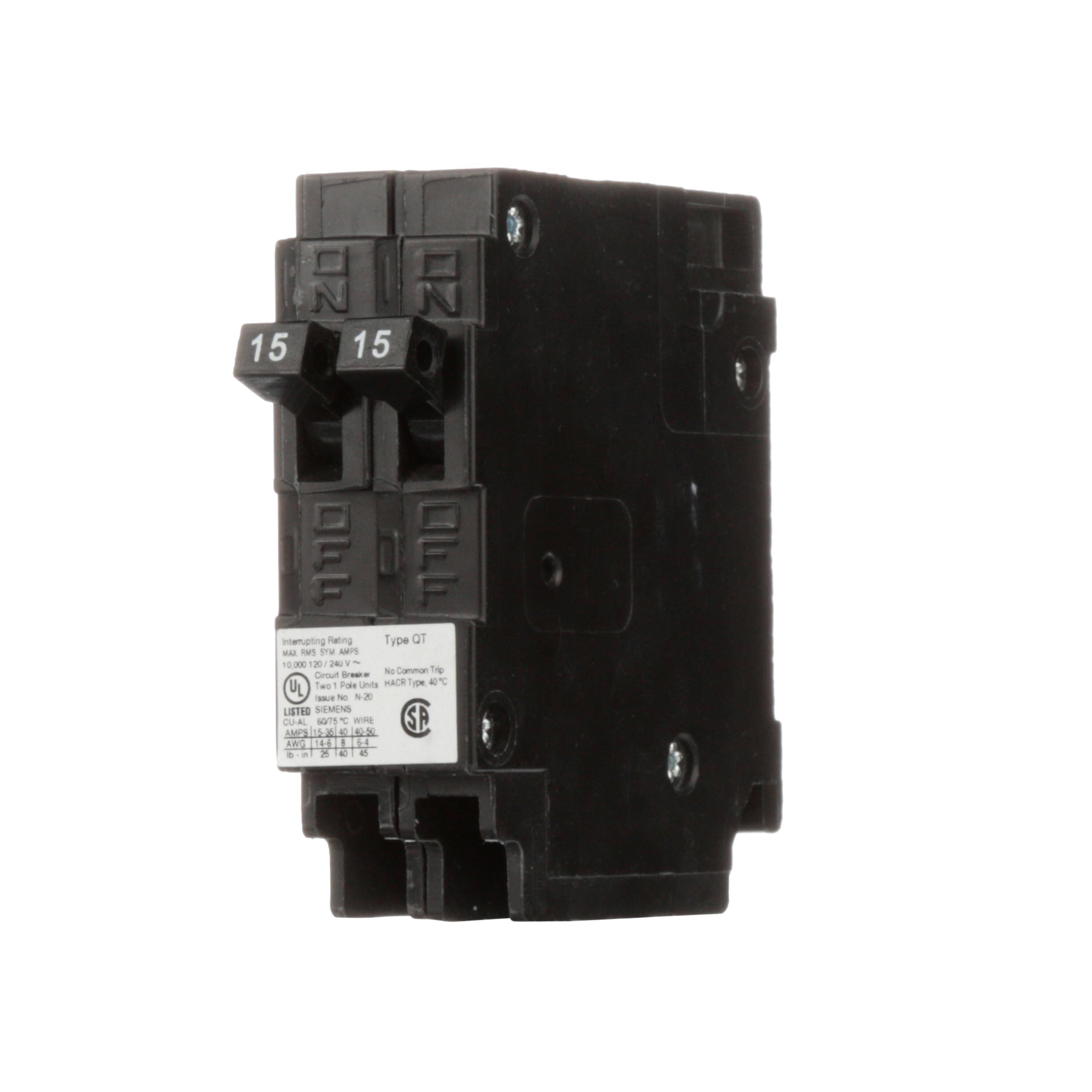

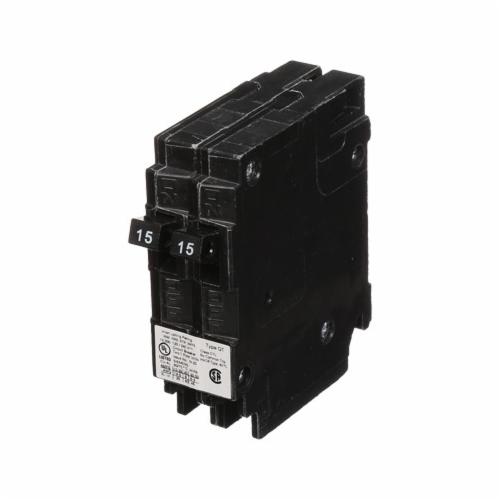

Siemens Q1515NC
Siemens Q1515NC Type QT Duplex Low Voltage Miniature Non-Current Limiting Molded Case Circuit Breaker, 120 VAC, 15 A, 10 kA Interrupt, 1 Poles, Thermal/Magnetic Trip
- Brand: Siemens
- MPN: Q1515NC
- UPC: 783643156609
- UNSPSC: 39121601
- ASPN: SIEQ1515NC
- Min. Order Qty: 1
- Qty. Interval: 1
- Sold as.: EACH
Siemens Molded Case Circuit Breaker, Type QT Duplex Low Voltage Miniature Non-Current Limiting, 120 VAC, 15 A, 60 Hz Frequency, 10 kA Interrupt, QT Frame, Thermal/Magnetic Trip, 1 Pole, 1 ph, Toggle Actuator, Plug-In Connection, 14 to 6 AWG Wire, Panel Mounting, 40 deg C, 3 in L x 1 in W x 3 in H Dimensions
| Type | : | Type QT Duplex Low Voltage Miniature Non-Current Limiting |
| Voltage Rating | : | 120 VAC |
| Amperage Rating | : | 15 A |
| Frequency Rating | : | 60 Hz |
| Interrupt Rating | : | 10 kA |
| Frame | : | QT |
| Trip Type | : | Thermal/Magnetic |
| Number of Poles | : | 1 |
| Phase | : | 1 |
| Actuator Type | : | Toggle |
| Connection Type | : | Plug-In |
| Wire Size | : | 14 to 6 AWG |
| Mounting Type | : | Panel |
| Temperature Rating | : | 40 deg C |
| Dimensions | : | 3 in L x 1 in W x 3 in H |
- These space saver duplex breakers combine two independent 1/2 in breaker poles in a common unit
- This unit plugs into one loadcenter stab and requires one panel space
- Siemens 2-pole duplex circuit breaker features high quality thermal magnetic case for extra protection
- Circuit breaker has toggle type switch and offers long time instantaneous functions to perform efficiently
- It is ideal to use in Siemens EQ, ultimate, ITE and Gould loadcenters
- It offers circuit limiting with rejection clip and uses plug-in mounting to hold firmly
- 15 to 15 A ampere rating
-
Catalog
https://www.frenchgerleman.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_05603d37be9b1e1a7d1ed67e4c444316002934d1a41ca9f4b6688170f045d2c8.pdf
-
Catalog
https://www.frenchgerleman.com/ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_05603d37be9b1e1a7d1ed67e4c444316002934d1a41ca9f4b6688170f045d2c8.pdf
-
Owners/User Manual
https://www.frenchgerleman.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_dff5a6393d2a4c62c40d588b4cce8d4eb17e6db6cbc78db432e65db79385ceb9.pdf
-
Owners/User Manual
https://www.frenchgerleman.com/ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_dff5a6393d2a4c62c40d588b4cce8d4eb17e6db6cbc78db432e65db79385ceb9.pdf
-
Specification Sheet
https://www.frenchgerleman.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_acc5ddbf6834a1700bda274f1873190cae56c95bf87f1413a73b7c310a83e793.pdf
-
Specification Sheet
https://www.frenchgerleman.com/ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_acc5ddbf6834a1700bda274f1873190cae56c95bf87f1413a73b7c310a83e793.pdf
- Video Link https://www.frenchgerleman.comhttps://digitalcontentcenter.compas.siemens-info.com/SIE_VI_xGB2_Breaker.mp4
