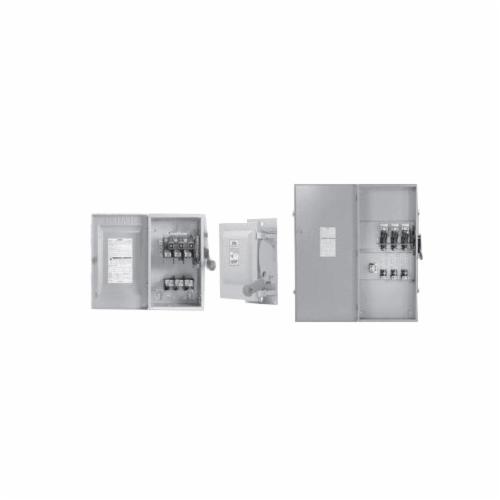

Siemens HNF365A

Siemens HNF365A Low Voltage Non-Fused Heavy Duty Safety Switch With Insulation, 600 VAC, 400 A, 350 hp, TPST Contact Form, 3 Poles

  • Brand: Siemens
  • MPN: HNF365A
  • UPC: 887621872472
  • UNSPSC: 39122205
  • FGPN: SIEHNF365A
  • Min. Order Qty: 1
  • Qty. Interval: 1
Price: loading
Qty
info
Siemens HNF365A

Siemens Heavy Duty Safety Switch, Low Voltage Non-Fused, 600 VAC, 400 A, 350 hp Horsepower, 3 Phase, 60 Hz Frequency Rating, 3 Pole, 3 Wires, 200 kA Short Circuit, TPST Contact Form, Lever Actuator, NEMA 1 Enclosure, Surface Mount, Lug Terminal, -20 to 120 deg F Temperature Rating, 44 in H x 24.65 in W x 14.68 in D Dimensions

Actuator Type : Lever
Amperage Rating : 400 A
Contact Form : TPST
Dimensions : 44 in H x 24.65 in W x 14.68 in D
Enclosure Type : NEMA 1
Frequency Rating : 60 Hz
Horsepower : 350 hp
Mounting Type : Surface
Number of Poles : 3
Number of Wires : 3
Phase : 3
Short Circuit Current Rating : 200 kA
Temperature Rating : -20 to 120 deg F
Terminal Type : Lug
Type : Low Voltage Non-Fused
Voltage Rating : 600 VAC
  • Quick-make, quick-break operating mechanism that ensures positive operation
  • Visible blade, double break switching action
  • Arc chutes dissipate heat and prolong switch life
  • Highly visible red handle grip designed for hook stick operation
  • Defeatable dual cover interlock, center punch provided for field drilling to allow on padlocking
  • Center punch provided for field drilling to allow ON padlocking
  • Handle can be padlocked in the OFF position with up to three padlocks with 5/16 in hasps
  • Generous top, bottom and side gutters that meet or exceed NEC wire bending space requirements
  • Informative door labeling which includes replacement parts list
  • Tangential knockouts through 600 A for easy conduit lineup
  • Side hinged door that opens 180 deg for easier wiring
  • Unique enclosure design increases rigidity and prevents cuts and scrapes to conductors and installers hands
  • Spring reinforced fuse clips that assure reliable contact for cool operation
  • Door latch securely holds door closed and allows cover padlocking
  • Front removable mechanical lugs that are suitable for CU/AI 60 or 75 deg C conductors
  • Lugs are field convertible to copper body and to a wide variety of compression connectors
  • Hinged clear line terminal shield with probe holes for inspecting or testing line side terminals
  • Embossed aluminum nameplate on heavy duty switches provides highly visible ON/OFF indication
  • Drawn cover for increased rigidity and resistance to abuse
  • Top key hole and bottom mounting holes provide easy 2 or 3-point mounting
  • pdf Catalog https://www.frenchgerleman.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdn-assets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Siemens_HF324SS_Catalog.pdf
  • pdf Specification Sheet https://www.frenchgerleman.com//ASSETS/DOCUMENTS/ITEMS/EN/https://cdn-assets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_fa2150004eec29bff4f9c2a6cd54ea3866708b9bf54dc81d9eded16767775e17.pdf
