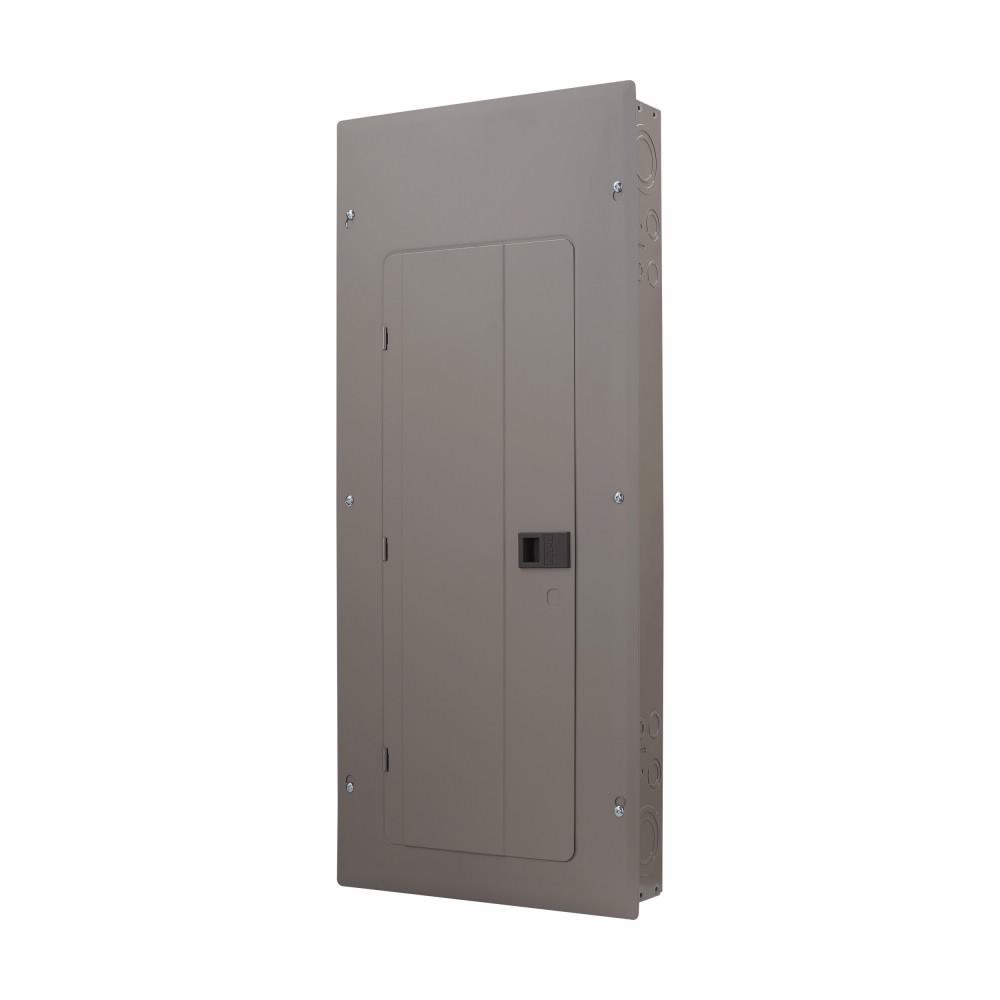

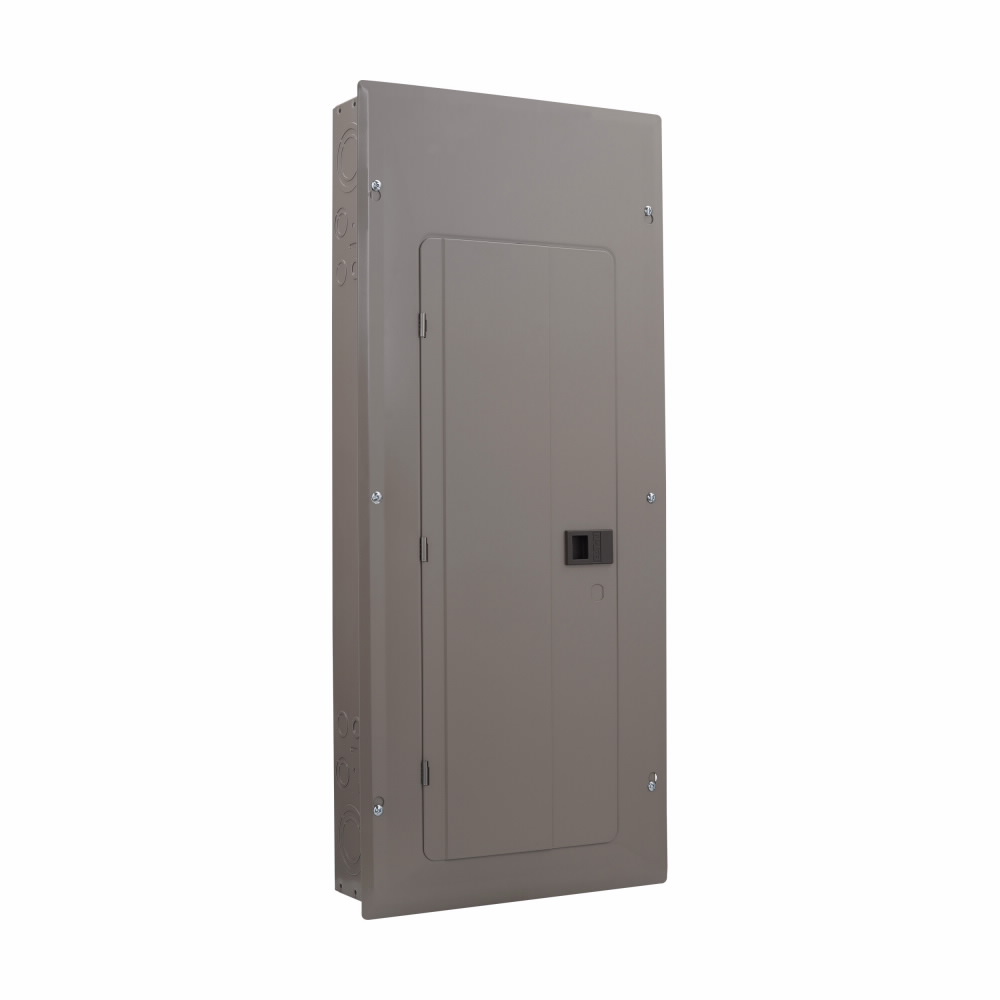

EATON CHP42L225X6

EATON CHP42L225X6 1-Phase Insulated/Bondable Split Standard Main Lug Load Center, 120/240 VAC, 225 A, 1 Poles, 25 kA Interrupt

  • Brand: EATON
  • MPN: CHP42L225X6
  • UPC: 786689055202
  • UNSPSC: 39121101
  • FGPN: CHCHP42L225X6
  • Min. Order Qty: 1
  • Qty. Interval: 1
Price: loading
Qty
info
EATON CHP42L225X6

EATON Main Lug Load Center, 1-Phase Insulated/Bondable Split Standard, 120/240 VAC, 225 A, 1 Pole, 25 kA Interrupt, 84 Circuits, CH/CHP Breaker, Plug-On Neutral Breaker Mounting, 3-Wire Wiring Configuration, 42 Spaces, 4 AWG to 300 kcmil Wire, Plug-On Mount, NEMA 1, X6 Enclosure Box, Sheet Steel Housing, 34.12 in L x 14.31 in W x 3.88 in H

Type : 1-Phase Insulated/Bondable Split Standard
Voltage Rating : 120/240 VAC
Amperage Rating : 225 A
Number of Poles : 1
Interrupt Rating : 10 kA
Number of Circuits : 84
Breaker Type : CH/CHP
Wiring Configuration : 3-Wire
Number of Spaces : 42
Wire Size : 4 AWG to 300 kcmil
Mounting Type : Plug-On
Enclosure Type : NEMA 1
Enclosure Box Size : X6
Housing Material : Sheet Steel
Dimensions : 34.12 in L x 14.31 in W x 3.88 in H
  • Quick make, quick break switch mechanism combined with inverse time element tripping operation and trip free handle design
  • Type CH circuit breakers trip to the Off position eliminating nuisance callbacks
  • The thermal magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short circuit conditions
  • pdf Catalog https://www.frenchgerleman.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_4699c4093f200f15c8feec0c1d17577c692ad449e7fa8bead4e77755afaf41b2.pdf
  • pdf Instruction/Installation Manual https://www.frenchgerleman.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/EATON_BR40SPAST_Manual.pdf
  • pdf Specification Sheet https://www.frenchgerleman.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/EATON_CHP42L225X6_Specification_Sheet.pdf
