Light Efficient Design LED-8088M50-G4

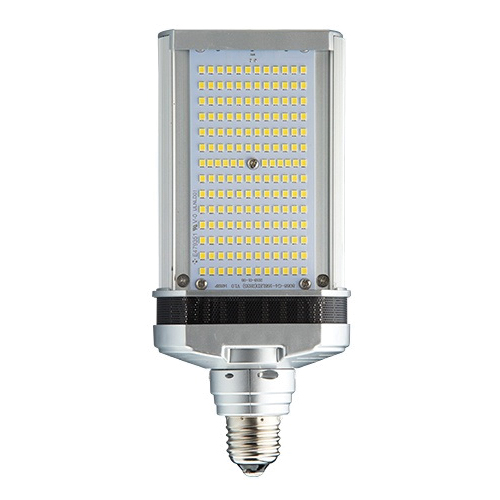

Light Efficient Design LED-8088M50-G4 Type B 4th Generation Ballast Compatible Plug and Play Shoebox/Wallpack LED Retrofit Lamp, 50 W, EX39 Mogul LED Lamp, Paddle Shape, 7250 Lumens
- Brand: Light Efficient Design
- MPN: LED-8088M50-G4
- UPC: 844006083472
- UNSPSC: 39101628
- ASPN: LEFDLED8088M50G4
- Min. Order Qty: 1
- Qty. Interval: 1
Light Efficient Design LED Retrofit Lamp, Type B 4th Generation Ballast Compatible Plug and Play Shoebox/Wallpack, 50 W Wattage, 120 to 277 VAC, LED Lamp, EX39 Mogul Lamp Base, Paddle Shape, 7250 Lumens, >50000 hr Average Life, Daylight, >80 CRI, 5000 k Color Temperature, Probe/Pulse Start, By-Pass Ballast, Enclosed Fixture, Type V Beam, 180 deg Beam, 3-3/4 in Dia x 8-1/2 in L Dimensions
| Type | : | Type B Generation 4 Ballast Compatible Non-Dimmable Plug and Play Shoebox/Wallpack |
| Wattage | : | 50 W |
| Voltage Rating | : | 120 to 277 VAC |
| Lamp Type | : | LED |
| Lamp Base Type | : | EX39 Mogul |
| Shape | : | Paddle |
| Lumens | : | 7250 Lumens |
| Average Life | : | >50000 hr |
| Color | : | Daylight |
| Color Rendering Index (CRI) | : | >80 |
| Color Temperature | : | 5000 K |
| Start Type | : | Probe/Pulse |
| Ballast Type | : | Bypass |
| Fixture Type | : | Enclosed |
| Beam Type | : | Type V |
| Beam Angle | : | 180 deg |
| Dimensions | : | 8.5 in H x 3.8 in W |
- Replaces up to 250 W HID, compatible with MH ballast up to 320 W
- Easy to install, reliable retrofits provide an energy savings up to 80%
- Rotatable E26/E39 screw base insures that light output is directed to where it is needed
- Delivers higher delivered lumens and efficacy compared to shoe box retrofits using generic LED "corn lamps"
- Advanced active cooling technology includes dynamic temperature monitoring, computer designed high efficiency heat sink and long life active cooling fan
- Superior heat management results in consistently higher performance and long LED life
- Safety rated and heat tested within fully enclosed fixtures from -40 to 122 deg F ambient temperature
-
Catalog
https://www.frenchgerleman.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/Light_Efficient_Design_LED_7324_27K_G2_Catalog.pdf
-
Instruction/Installation Manual
https://www.frenchgerleman.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/Light_Efficient_Design_LED_8088M30_G4_Manual.pdf
-
Specification Sheet
https://www.frenchgerleman.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/Light_Efficient_Design_LED_8088M50_G4_Specification_Sheet.pdf
