    IDEAL® 30-1347J

    Ideal Industries 30-1347J

    IDEAL® Twister® ProFLEX™ 30-1347J Twist-On Wire Connector, Swept Wing Shell, Expanding Square Wire Spring, 22 to 8 AWG, (2) 18 to (4) 10 AWG AWG Solid Copper/Stranded Wire, Thermoplastic Polypropylene/Thermoplastic Elastomer

    • Brand: IDEAL®
    • MPN: 30-1347J
    • UPC: 783250802401
    • UNSPSC: 39121445
    • ASPN: IDE301347J
    • Min. Order Qty: 500
    • Qty. Interval: 500
    Price: loading
    Qty
    Add To Cart
    info
    IDEAL® 30-1347J

    IDEAL® Twister® ProFLEX™ Twist-On Wire Connector, Series: 347, Swept Wing, Expanding Square Wire, Solid Copper/Stranded Wire, 22 to 8 AWG, (2) 18 to (4) 10 AWG AWG Wire, 1000 VAC, 221 deg F, Thermoplastic Polypropylene/Thermoplastic Elastomer, Red/Yellow, Zinc Plated, 1.45 in L x 0.91 in W

    Series : 347
    Shell Style : Swept Wing
    Spring Type : Expanding Square Wire
    Wire Type : Solid Copper/Stranded
    Wire Size : 22 to 8 AWG, (2) 18 to (4) 10 AWG AWG
    Voltage Rating : 1000 VAC
    Temperature Rating : 221 deg F
    Material : Thermoplastic Polypropylene/Thermoplastic Elastomer
    Color : Red/Yellow
    Finish : Zinc Plated
    Dimensions : 1.45 in L x 0.91 in W

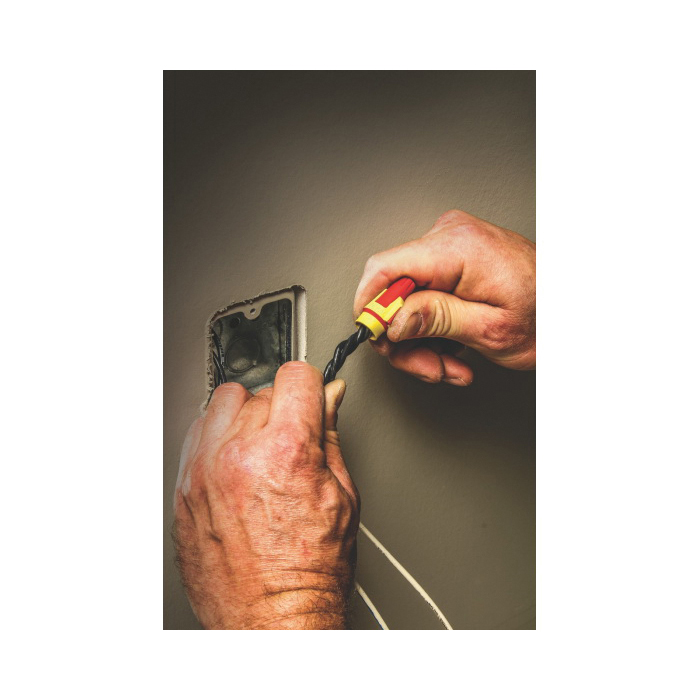

    • Flexible skirt provides improved protection and adapts to tightly fit electrical boxes with limited space
    • Swept wing design with SureGrip™ overmold offers greater comfort, leverage, and torque for faster connections
    • Expanding square-wire spring and polypropylene shell deliver a secure connection every time
    • Tough, UL 94V-2 flame-retardant shell
    • pdf Catalog https://www.frenchgerleman.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/IDEAL_30_1047_Catalog.pdf
    • pdf Instruction/Installation Manual https://www.frenchgerleman.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/IDEAL_30_1047_Manual.pdf
    • pdf Specification Sheet https://www.frenchgerleman.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/IDEAL_30_1047_Specification_Sheet.pdf
    • pdf Warranty Information https://www.frenchgerleman.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/IDEAL_30_1047_Warranty.pdf
