Thomas & Betts DALR-6-CG
Red Dot® D-Pak™ DALR-6-CG A Series Type LR Conduit Body With Cover, Gasket, 2 in Hub, 73.8 cu-in Capacity, Die Cast Aluminum, Powder Coated Urethane
- Brand: Steel City®
- MPN: DALR-6-CG
- UPC: 042269003620
- UNSPSC: 39131708
- ASPN: TNBDALR6CG
- Min. Order Qty: 1
- Qty. Interval: 1
Red Dot® D-Pak™ Conduit Body, Type LR, Series: A Series, 2 in Hub, 2 Hubs, 73.8 cu-in, NPT/Set Screw, Die Cast Aluminum, Powder Coated Urethane, 10-3/16 in L x 3-15/16 in W x 3-7/16 in H
| Type | : | Type LR |
| Series | : | A Series |
| Hub Size | : | 2 in |
| Number of Hubs | : | 2 |
| Capacity | : | 73.8 cu-in |
| Connection Type | : | NPT/Set Screw |
| Material | : | Die Cast Aluminum |
| Finish | : | Urethane Powder Coated |

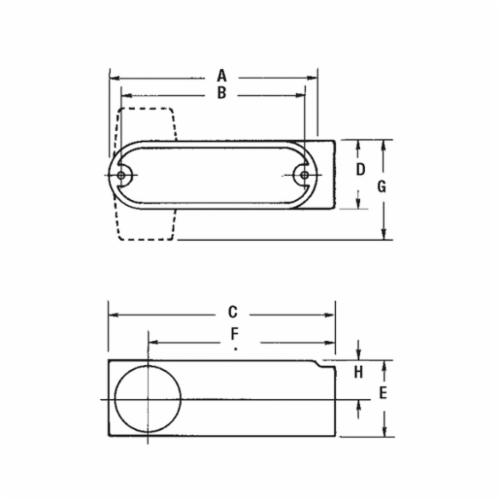

| Dimensions | : | 10-3/16 in L x 3-15/16 in W x 3-7/16 in H |
- Combination packaging of conduit body, cover and gasket reduces handling and inventory costs
- See through wrapper provides instant identification and protects product on job site
- Red Dot® quality in durable, die cast aluminum construction made to endure the elements
- Spacious, accessible wiring chamber provides a convenient location to pull conductors and make splices
- Threaded conduit bodies maintain a weather-resistant conduit system when used with covers and gaskets
- Right side access opening
- 4/0 AWG maximum wire fill
- Copper-free die cast aluminum
-
