Thomas & Betts DALL-6-CG
Red Dot® DALL-6-CG A Series Type LL Conduit Body With Cover, Gasket, 2 in Hub, 69.5 cu-in Capacity, Die Cast Aluminum
- Brand: Steel City®
- MPN: DALL-6-CG
- UPC: 042269003590
- UNSPSC: 39131708
- ASPN: TNBDALL6CG
- Min. Order Qty: 1
- Qty. Interval: 1
Red Dot® Conduit Body, Type LL, Series: A Series, 2 in Hub, 2 Hubs, 69.5 cu-in, NPT/Set Screw, Die Cast Aluminum, 10-3/16 in L x 3-15/16 in W x 3-7/16 in H
| Type | : | Type LL |
| Series | : | A Series |
| Hub Size | : | 2 in |
| Number of Hubs | : | 2 |
| Capacity | : | 69.5 cu-in |
| Connection Type | : | NPT/Set Screw |
| Material | : | Die Cast Aluminum |

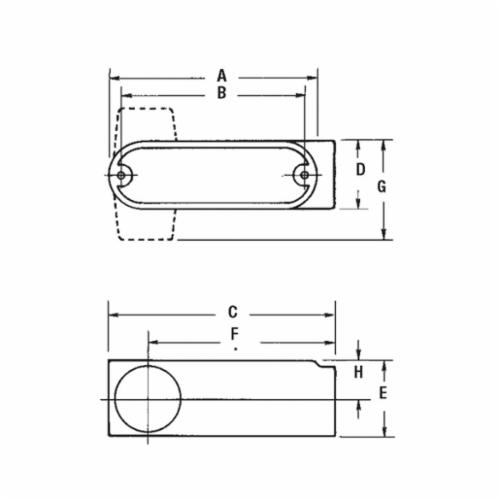

| Dimensions | : | 10-3/16 in L x 3-15/16 in W x 3-7/16 in H |
- Combination packaging of conduit body, cover and gasket reduces handling and inventory costs
- Expanded line covers hub sizes from 1/2 to 4 in
- See through wrapper provides instant identification and protects product on job site
- Threaded conduit bodies maintain a weather-resistant conduit system when used with covers and gaskets
- Left side access opening
- Spacious, accessible wiring chamber provides a convenient location to pull conductors and make splices
- Red Dot® quality in durable, die cast aluminum construction made to endure the elements
-
Catalog
https://www.frenchgerleman.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_a398285823b328ad046c7152190c26c236aabe3762e097ebd5695443cb192394.pdf
