Thomas & Betts LB27-G
Ocal® OCAL-BLUE® LB27-G Type LB Conduit Body With Cover, 3/4 in Hub, Form 7 Form, 6.6 cu-in Capacity, Iron, PVC Coated
- Brand: Ocal®
- MPN: LB27-G
- UPC: 704508390167
- UNSPSC: 39131708
- ASPN: TNBLB27G
- Min. Order Qty: 1
- Qty. Interval: 1
Ocal® OCAL-BLUE® Conduit Body, Type LB, 3/4 in Hub, 2 Hubs, 6.6 cu-in Capacity, Form 7 Form, NEMA RN-1 Enclosure, Thread Connection, Iron, PVC Coated, Dark Gray, 5.25 in L x 1.65 in W x 2.4 in H Dimensions
| Type | : | Type LB |
| Hub Size | : | 3/4 in |
| Number of Hubs | : | 2 |
| Capacity | : | 6.6 cu-in |
| Form | : | 7 |
| Enclosure | : | NEMA RN-1 |
| Connection Type | : | Threaded |
| Material | : | Iron |
| Finish | : | PVC Coated |
| Color | : | Dark Gray |

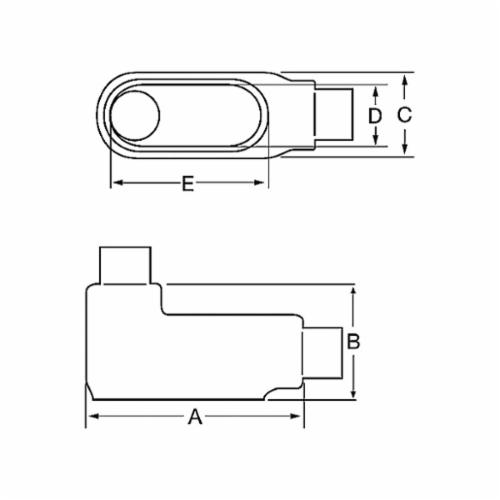

| Dimensions | : | 5.25 in L x 1.65 in W x 2.4 in H |
- The conduit body and cover are double coated with a nominal 0.002 in blue urethane on both the interior and exterior, before PVC coating is applied
- A minimum of 0.04 in PVC coating is bonded to the exterior
- Covers are coated with a molded flange to seal the conduit body while the conduit body is molded with a flat surface on its opening to seal with the cover
- Ocal® Pressure sealing sleeves on all threaded hubs
- Ocal® conduit bodies are shipped with a cover and encapsulated stainless steel screws
- Bodies are designed with a flat back, allowing more cubic inch capacity
- The flat back also keeps the body more stable during installation, requiring fewer conduit straps
- Provide openings for making splices and taps in conductors
- Connect conduit sections
- Provide taps for branch conduit runs
- Make 90 deg bends in conduit runs
- Provide for access to conductors for maintenance and future system changes
-
