    Color-Keyed® 54114

    Thomas & Betts 54114

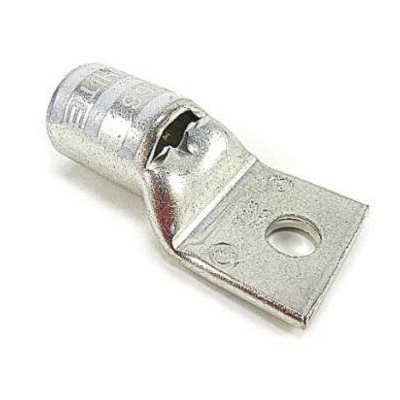

    Color-Keyed® 54114 54100 1-Hole Non-Insulated Compression Lug With Peep Hole, 300 kcmil Copper Conductor, Die Code: 66, 1/2 in Stud, Copper

    • Brand: Color-Keyed®
    • MPN: 54114
    • UPC: 786210541143
    • UNSPSC: 39121405
    • ASPN: TNB54114
    • Min. Order Qty: 1
    • Qty. Interval: 1
    Price: loading
    Qty
    Add To Cart
    info
    Limited to quantity on hand. No backorders allowed and no returns accepted.
    Color-Keyed® 54114

    Color-Keyed® Compression Lug, 1-Hole Non-Insulated, Series: 54100, Copper Conductor, 300 kcmil Conductor, Die Code: 66, 35 kV, 1/2 in Stud, Straight Tongue, 1.25 in L x 1.25 in W x 0.15 in THK Tongue, 2.7 in Overall Length, Standard Barrel, 0.85 in Dia Barrel, Specifications: Tin Plated, 0.531 in Mounting Hole, Copper, White

    Type : 1-Hole
    Conductor Type : Copper
    Conductor Size : 300 kcmil
    Die Code : 66
    Voltage Rating : 600 to 35000 VAC
    Stud Size : 1/2 in
    Tongue Size : 1.25 in L x 1.25 in W x 0.15 in THK
    Overall Length : 2.7 in
    Barrel Size : 0.85 in Dia
    Material : Copper
    • Peep hole
    • High conductivity wrought copper construction
    • pdf Catalog https://www.frenchgerleman.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_1511873493768.pdf
    • pdf Instruction/Installation Manual https://www.frenchgerleman.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_31d8b0f49a6411ab26a9e5ab4f42251f13b2b19cc7f4fd610461947e1818e167.pdf
    • pdf Line Drawing https://www.frenchgerleman.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_3e7935379fd3e4c6f1d7f53efb3d0c00331d2840b39ef8ba6ec4ce9fadc4fe15.pdf
    • pdf Specification Sheet https://www.frenchgerleman.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_72a26a9951bc199eb9981879f7f2496c3db2468aed2231bbf255412129e8ced4.pdf
