Thomas & Betts 54509

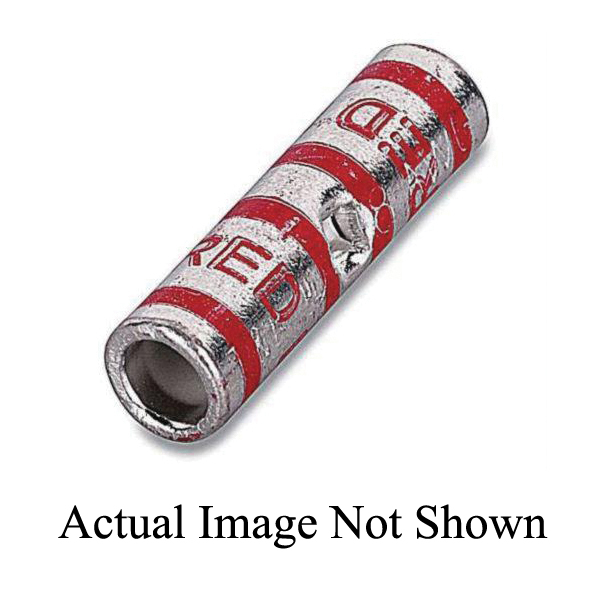

Color-Keyed® 54509 2-Way Standard Barrel Splice Connector, 1/0 AWG Copper Conductor, Die Code: 42, 1.63 in L, Copper
- Brand: Color-Keyed®
- MPN: 54509
- UPC: 786210545097
- UNSPSC: 39121449
- ASPN: TNB54509
- Min. Order Qty: 1
- Qty. Interval: 1
Color-Keyed® Splice Connector, 2-Way Standard Barrel, Copper Conductor, 1/0 AWG Conductor, Die Code: 42, 600 VAC, 0.52 in OD, 1.63 in Length, Specifications: Tin Plated, Copper, Pink Color Code
| Type | : | Two-Way |
| Conductor Type | : | Copper |
| Conductor Size | : | 1/0 AWG |
| Voltage Rating | : | 600 V |
| Length | : | 1.63 in |
| Material | : | Wrought Copper |
| Dimensions | : | 0.52 in Dia |
- 2-way connectors provide high pullout values, are easy to insulate and provide a low resistance connection of high quality and low installed cost
- Color coded for correct matching of installing die and connector
- 35 kV max voltage
- 225/24 = 90.8 kcmil, No 1 Weld, 133/.0254 wire size flex
-
Instruction/Installation Manual
https://www.frenchgerleman.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_b709e48b534d85f52519906cac01db6f334d4da9950c3361ff143ad2aa404498.pdf
-
Specification Sheet
https://www.frenchgerleman.com//ASSETS/DOCUMENTS/ITEMS/EN/https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_e36e6e0f61271c45939f95bc7c0ae939a3b2d5cf6b34f4f46d1caa4c53378ec9.pdf
