Thomas & Betts 54909BE

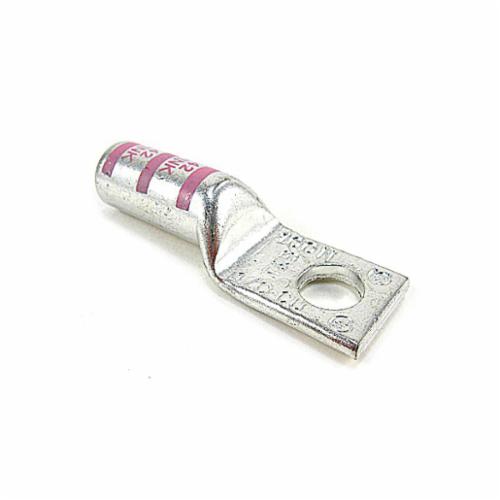

Color-Keyed® 54909BE 54900 1-Hole Non-Insulated Compression Lug, 1/0 AWG Copper/Stranded Conductor, Die Code: 42, 3/8 in Stud, Copper
- Brand: Color-Keyed®
- MPN: 54909BE
- UPC: 786210890111
- UNSPSC: 39121405
- ASPN: TNB54909BE
- Min. Order Qty: 1
- Qty. Interval: 1
Color-Keyed® Compression Lug, 1-Hole Non-Insulated, Series: 54900, Copper/Stranded Conductor, 1/0 AWG Conductor, Die Code: 42, 35 kV, 3/8 in Stud, Straight Tongue, 0.93 in L x 0.75 in W x 0.13 in THK Tongue, 2.23 in Overall Length, Blind End/Long Barrel, 0.52 in Dia Barrel, Specifications: 3/8 in Center of Hole to Tongue End, Tin Plated, 0.406 in Mounting Hole, Copper, Pink
| Type | : | 1-Hole |
| Series | : | 54900 |
| Conductor Type | : | Copper |
| Conductor Size | : | 1/0 AWG |
| Die Code | : | 42 |
| Voltage Rating | : | 600 to 35000 VAC |
| Stud Size | : | 3/8 in |
| Tongue Size | : | 0.93 in L x 0.75 in W x 0.13 in THK |
| Overall Length | : | 2.23 in |
| Barrel Size | : | 0.52 in Dia |
| Material | : | Copper |
- Connectors have colored bands or colored dots that correspond to color markings on the dies
- Color-Keyed® connectors are banded by colored stripes or engraving to indicate location of die on connector for compression
- Connection by compression
- High quality connection at a low installed cost
- High conductivity wrought copper construction
- 3/8 in hole center to end
- Tin plated finish
-
